Introduction

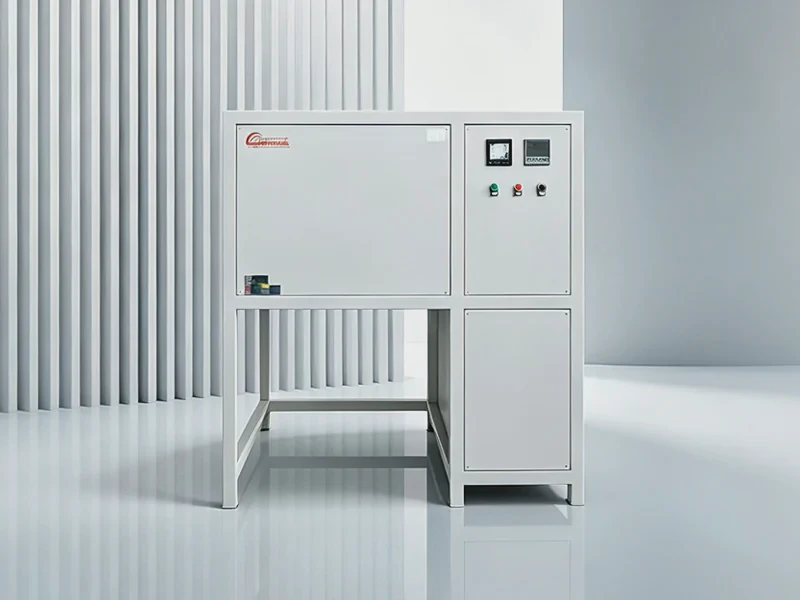

High-temperature crucible frit furnaces are suitable for major universities, scientific research institutes, industrial and mining enterprises, etc. in powder, metallurgy, ceramics, glass, new materials and other fields.
Equipped with PID automatic temperature control system, the maximum temperature can reach 1700 degrees.
The furnace shell is made of high-quality carbon steel, which is strong and durable; the double-layer air-cooled shell ensures safe use; the furnace is made of imported composite alumina polycrystalline fiber material, which has strong thermal shock resistance, strong corrosion resistance, and long service life. Advantage. At the same time, independent over-temperature protection, over-voltage, over-current, leakage and short-circuit and other protection systems are adopted.
Technical Parameters
model | Maximum temperature (℃) | Working temperature (℃) | Inner dimensions (diameter*height) (mm) | Volume (L) | Power (kW) | Phase | Thermocouple type |
|---|---|---|---|---|---|---|---|
BR-RHL-1.6 | 1700 | 1600 | 145*292 | 1.6 | 7 | 1 | Type B |
BR-RHL-3 | 1700 | 1600 | 195*292 | 3 | 9 | 3 | Type B |
BR-RHL-5 | 1700 | 1600 | 230*290 | 5 | 12 | 3 | Type B |
BR-RHL-10 | 1700 | 1600 | 335*300 | 10 | 16 | 3 | Type B |
BR-RHL-18 | 1700 | 1600 | 320*410 | 18 | 20 | 3 | Type B |
Size can be customized | |||||||
