Introduction
The muffle furnace uses a polycrystalline mullite fiber furnace, which has low thermal conductivity, high strength, and excellent thermal insulation and energy-saving effects.
The furnace roof is a reinforced composite structure, which will not collapse after long-term use. This series of box furnaces are special equipment developed for sintering, melting and analyzing metal, non-metal and other compound materials in laboratories of universities, scientific research institutes and industrial and mining enterprises.
Features
● Maximum temperature RT～1800℃.
● Capacity 1~1000L.
● Heating elements: HRE iron-chromium-aluminum resistance wire, U-shaped silicon carbon rod, U-shaped silicon molybdenum rod, etc.
● Both top and side doors can be customized to keep the operator away from heat sources.
● Intelligent 50-segment programmable automatic control.
● With over-temperature alarm function.
● Double-layer air-cooling structure, cooling fan can ensure that the shell temperature is below 60 degrees.
Standard accessories
Furnace door fire block; high temperature gloves; crucible tongs; instructions; additional heating elements (Models 1400 and 1700)
Optional accessories
High-definition touch screen; exhaust hole; observation hole; multi-layer kiln furniture; corundum crucible; communication software, etc.
Technical Parameters
Technical parameters of 1200℃ muffle furnace
model | Maximum temperature (℃) | Working temperature (℃) | Inner dimensions (width*height*depth) ( mm ) | Volume (L) | Power ( kW ) | Phase | Thermocouple type |
|---|---|---|---|---|---|---|---|
BR-12N-1 | 1200 | 1100 | 100*100*100 | 1 | 0.8 | 1 | K type |
BR-12N-2 | 1200 | 1100 | 120*120*130 | 2 | 1.2 | 1 | K type |
BR-12N-3 | 1200 | 1100 | 150*150*150 | 3 | 2.5 | 1 | K type |
BR-12N-5 | 1200 | 1100 | 150*150*200 | 5 | 3 | 1 | K type |
BR-12N-8 | 1200 | 1100 | 200*200*200 | 8 | 5 | 1 | K type |
BR-12N-12 | 1200 | 1100 | 200*200*300 | 12 | 6 | 1 | K type |
BR-12N-27 | 1200 | 1100 | 300*300*300 | 27 | 8 | 1 | K type |
BR-12N-36 | 1200 | 1100 | 300*300*400 | 36 | 10 | 3 | K type |
BR-12N-64 | 1200 | 1100 | 400*400*400 | 64 | 16 | 3 | K type |
BR-12N-125 | 1200 | 1100 | 500*500*500 | 125 | 25 | 3 | K type |
BR-12N-216 | 1200 | 1100 | 600*600*600 | 216 | 36 | 3 | K type |
BR-12N-512 | 1200 | 1100 | 800*800*800 | 512 | 64 | 3 | K type |
BR-12N-729 | 1200 | 1100 | 900*900*900 | 729 | 80 | 3 | K type |
BR-12N-1000 | 1200 | 1100 | 1000*1000*1000 | 1000 | 100 | 3 | K type |
Size can be customized | |||||||

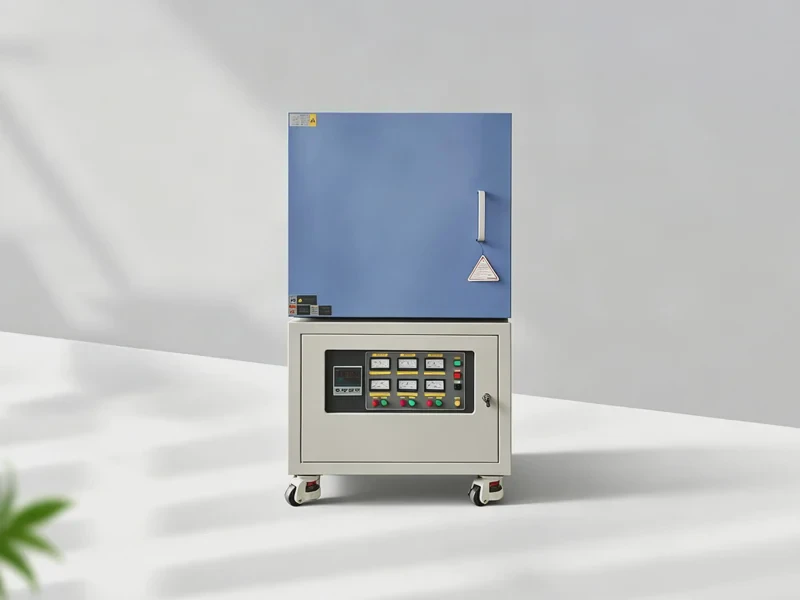

1400℃ muffle furnace technical parameters
model | Maximum temperature (℃) | Working temperature (℃) | Inner dimensions (width*height*depth) ( mm ) | Volume (L) | Power ( kW ) | Phase | Thermocouple type |
|---|---|---|---|---|---|---|---|
BR-14S-1 | 1400 | 1300 | 100*100*100 | 1 | 1 | 1 | S type |
BR-14S-2 | 1400 | 1300 | 120*120*130 | 2 | 2 | 1 | S type |
BR-14S-3 | 1400 | 1300 | 150*150*150 | 3 | 3 | 1 | S type |
BR-14S-5 | 1400 | 1300 | 150*150*200 | 5 | 4 | 1 | S type |
BR-14S-8 | 1400 | 1300 | 200*200*200 | 8 | 5 | 1 | S type |
BR-14S-12 | 1400 | 1300 | 200*200*300 | 12 | 7 | 1 | S type |
BR-14S-27 | 1400 | 1300 | 300*300*300 | 27 | 9 | 1 | S type |
BR-14S-36 | 1400 | 1300 | 300*300*400 | 36 | 11 | 3 | S type |
BR-14S-64 | 1400 | 1300 | 400*400*400 | 64 | 18 | 3 | S type |
BR-14S-125 | 1400 | 1300 | 500*500*500 | 125 | 27 | 3 | S type |
BR-14S-216 | 1400 | 1300 | 600*600*600 | 216 | 40 | 3 | S type |
BR-14S-512 | 1400 | 1300 | 800*800*800 | 512 | 70 | 3 | S type |
BR-14S-729 | 1400 | 1300 | 900*900*900 | 729 | 88 | 3 | S type |
BR-14S-1000 | 1400 | 1300 | 1000*1000*1000 | 1000 | 110 | 3 | S type |
Size can be customized | |||||||

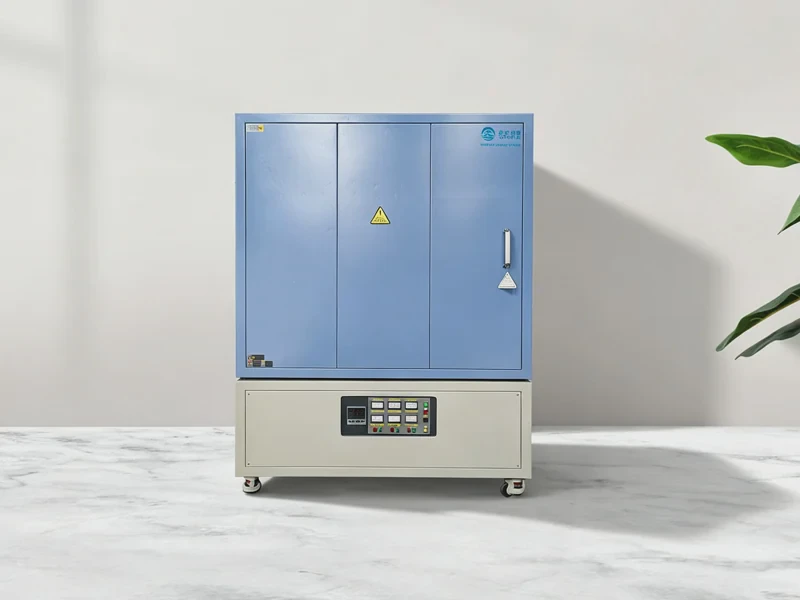

Technical parameters of 1700℃ muffle furnace
model | Maximum temperature (℃) | Working temperature (℃) | Inner dimensions (width*height*depth) ( mm ) | Volume (L) | Power ( kW ) | Phase | Thermocouple type |
|---|---|---|---|---|---|---|---|
BR-17M-1 | 1700 | 1600 | 100*100*100 | 1 | 1 | 1 | Type B |
BR-17M-2 | 1700 | 1600 | 120*120*130 | 2 | 3 | 1 | Type B |
BR-17M-3 | 1700 | 1600 | 150*150*150 | 3 | 4 | 1 | Type B |
BR-17M-5 | 1700 | 1600 | 150*150*200 | 5 | 5 | 1 | Type B |
BR-17M-8 | 1700 | 1600 | 200*200*200 | 8 | 7 | 1 | Type B |
BR-17M-12 | 1700 | 1600 | 200*200*300 | 12 | 8 | 1 | Type B |
BR-17M-27 | 1700 | 1600 | 300*300*300 | 27 | 10 | 3 | Type B |
BR-17M-36 | 1700 | 1600 | 300*300*400 | 36 | 12 | 3 | Type B |
BR-17M-64 | 1700 | 1600 | 400*400*400 | 64 | 20 | 3 | Type B |
BR-17M-125 | 1700 | 1600 | 500*500*500 | 125 | 30 | 3 | Type B |
BR-17M-216 | 1700 | 1600 | 600*600*600 | 216 | 45 | 3 | Type B |
BR-17M-512 | 1700 | 1600 | 800*800*800 | 512 | 80 | 3 | Type B |
BR-17M-729 | 1700 | 1600 | 900*900*900 | 729 | 96 | 3 | Type B |
BR-17M-1000 | 1700 | 1600 | 1000*1000*1000 | 1000 | 120 | 3 | Type B |
Size can be customized | |||||||

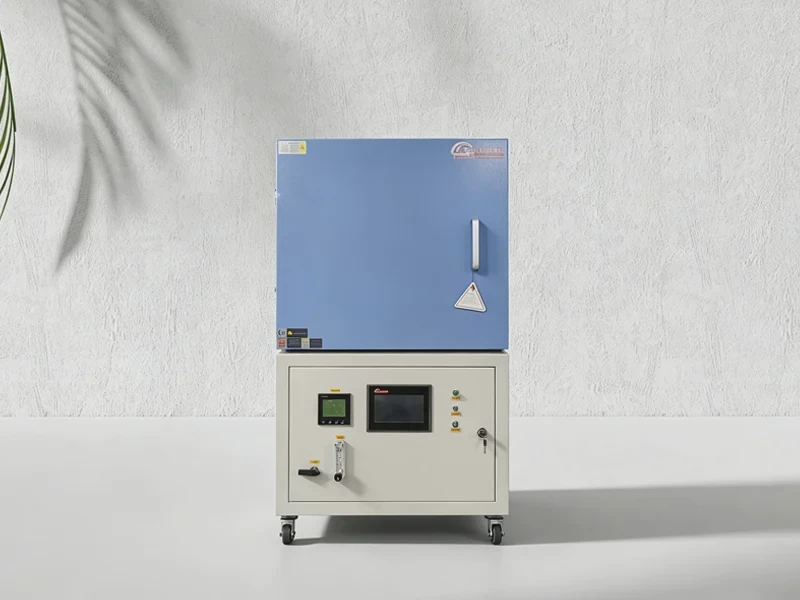

1800℃ muffle furnace technical parameters
model | Maximum temperature (℃) | Working temperature (℃) | Inner dimensions (width*height*depth) ( mm ) | Volume (L) | Power ( kW ) | Phase | Thermocouple type |
|---|---|---|---|---|---|---|---|
BR-18HM-1 | 1800 | 1700 | 100*100*100 | 1 | 2 | 1 | Type B |
BR-18HM-2 | 1800 | 1700 | 120*120*130 | 2 | 4 | 1 | Type B |
BR-18HM-3 | 1800 | 1700 | 150*150*150 | 3 | 6 | 1 | Type B |
BR-18HM-5 | 1800 | 1700 | 150*150*200 | 5 | 7 | 1 | Type B |
BR-18HM-8 | 1800 | 1700 | 200*200*200 | 8 | 8 | 1 | Type B |
BR-18HM-12 | 1800 | 1700 | 200*200*300 | 12 | 9 | 1 | Type B |
BR-18HM-27 | 1800 | 1700 | 300*300*300 | 27 | 12 | 3 | Type B |
BR-18HM-36 | 1800 | 1700 | 300*300*400 | 36 | 15 | 3 | Type B |
BR-18HM-64 | 1800 | 1700 | 400*400*400 | 64 | 25 | 3 | Type B |
BR-18HM-125 | 1800 | 1700 | 500*500*500 | 125 | 35 | 3 | Type B |
BR-18HM-216 | 1800 | 1700 | 600*600*600 | 216 | 50 | 3 | Type B |
