How to Choose the Suitable Muffle Furnace?

BROTHER FURNACE 27 Aug , 2024

Muffle furnace is a multifunctional machine for high-temperature treatment, which is widely used in laboratories and industrial production. It adopts highly efficient insulation materials (e.g. polycrystalline mullite fiber) with excellent heat preservation and energy saving effect.

Chamber furnaces are usually equipped with high-temperature heating elements and intelligent control systems, which can meet various needs for sintering, melting, and analysis. Their design structure ensures long-term stable operation while providing a variety of safety features to safeguard operators.

In the vast field of industrial production and scientific research exploration, muffle furnace as an indispensable key piece of equipment for the heat treatment process, its choice not only concerns production efficiency and product quality but is also an important part of technological innovation and cost control.

How to select the most suitable for your own needs in the many options?

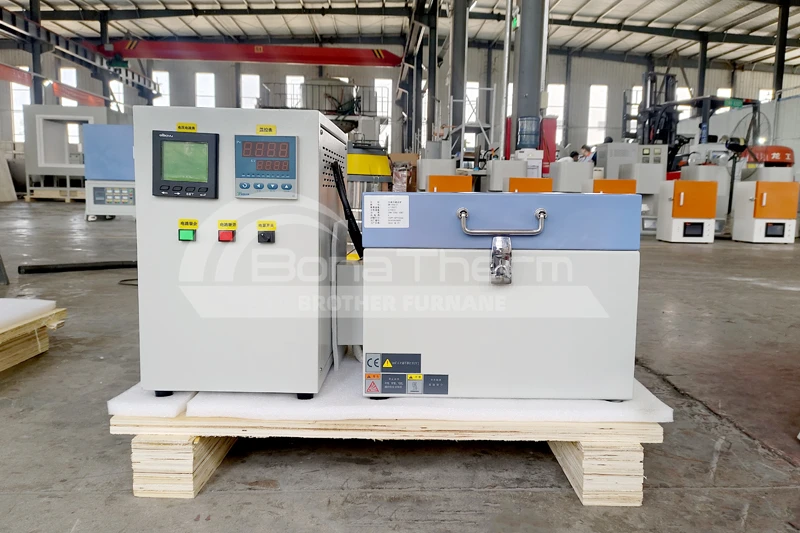

Today, Brother Furnace takes you to further understand the muffle furnace. Hope it will be helpful to you.split-chamber-furnace

Features of Muffle Furnaces

As a common heat treatment equipment in laboratory and industrial applications, muffle furnaces are widely favored for their stable performance and flexible applications. They are designed to meet a wide range of heat treatment needs from high-temperature sintering to melting and annealing. The chamber furnace mainly consists of a high-temperature furnace chamber, a multifunctional control system, and safety protection devices.

High-efficiency Heat Retention Design

The high-temperature muffle furnace adopts an advanced polycrystalline mullite fiber hearth, a material with excellent thermal insulation properties. Its low thermal conductivity effectively reduces heat loss, thereby improving thermal efficiency and significantly reducing energy consumption. This design not only reduces heat loss but also effectively protects the furnace structure and extends its service life.

High-temperature Resistance

Depending on the series, the chamber furnaces can withstand high operating temperatures ranging from 1,200 °C to 1,800 °C.

The furnaces are designed to withstand high operating temperatures. Each series design has been carefully tested to ensure stability and reliability under extreme high-temperature conditions. They are suitable for treating a wide range of metallic, non-metallic, and complex compound materials to meet different experimental and production requirements.

Intelligent Control System

Brother Furnace equips the high-temperature muffle furnace with an advanced intelligent control system that supports 50-segment temperature program programming. This high-precision control system allows users to set complex heating and cooling curves, ensuring precise temperature control to meet demanding heat treatment processes.

At the same time, the system provides an over-temperature alarm function to further enhance the safety of the equipment.

Safety Guarantee

The box furnace has a multi-layer air-cooled structure equipped with a highly efficient cooling fan to ensure that the temperature of the furnace shell is controlled at less than 60°C, avoiding the potential risk of high temperatures to the operator.

In addition, the furnace chamber is designed to be robust and durable, and the reinforced roof structure can effectively prevent deformation or collapse of the roof after prolonged use.muffle-furnace-1

Provide Diversified Heating Elements

To adapt to different heat treatment requirements, Brother Furnace provides customers with a variety of heating elements to choose from, including HRE ferrochromium-aluminum resistance wires, U-type silicon carbon rods, and U-type silicon molybdenum rods.

HRE resistance wires are suitable for low and medium temperatures, while the silicon carbon rods and silicon molybdenum rods are suitable for high temperatures so that customers can choose the appropriate heating elements according to their specific needs.

Brother Furnace: Dedicated to Meet Customers' Diversified Needs

As a professional manufacturer of chamber furnaces, Brother Furnace knows that as a bridge connecting raw materials and finished products, the stability of the performance of the muffle furnace, heating uniformity, as well as ease of operation, and other factors will directly affect the final performance of the product. Considering the different needs of customers, Brother Furnace provides high-temperature muffle furnaces with different characteristics for customers to choose from.

1. BR-12N Series

Features

● Maximum temperature: 1200℃

● Volume range: 1L to 1000L

● Heating element: HRE iron-chromium aluminum resistance wire

● Thermocouple: Type K

Applicable Scenario

The BR-12N series is suitable for general laboratory applications and low to medium-temperature processing such as sintering and melting of metallic and non-metallic materials. This series of muffle furnaces are cost-effective and suitable for applications requiring lower temperatures and medium volumes.

2. BR-14S Series

Features

● Maximum temperature: 1400°C

● Volume range: 1L to 1000L

● Heating element: U-type silicon carbon rod, U-type silicon molybdenum rod

● Thermocouple: Type S

Applicable Scenario

The BR-14S series is suitable for medium to high-temperature applications such as high-temperature sintering, melting, and processing of special materials. This series provides a higher upper-temperature limit and greater heating capacity for experimental and production environments that require high-temperature operation.sintering-of-metal-powders

3. BR-17M Series

Features

● Maximum temperature: 1700°C

● Volume range: 1L to 1000L

● Heating element: U-type silicon molybdenum rod

● Thermocouple: Type B

Applicable Scenario

The BR-17M series is suitable for higher-temperature treatments such as high-temperature melting and high-temperature treatment of special materials. The muffle furnace's design of this series is optimized for stable operation in extremely high-temperature environments.

4. BR-18HM Series

Features

● Maximum temperature: 1800°C

● Volume range: 1L to 216L

● Heating element: U-shaped silicon molybdenum rod

● Thermocouple: Type B

Applicable Scenario

The BR-18HM series is suitable for applications at extremely high temperatures, such as the treatment of high-temperature materials and high-temperature experiments. This series of high-temperature box furnaces can operate stably for long periods at extremely high temperatures, making them suitable for industrial and research applications that require ultra-high temperatures.

Brother Furnace: Professional Muffle Furnace Manufacturer

Choosing the suitable muffle furnace needs to be determined according to the actual processing needs, such as considering the temperature range, volume, heating elements and so on.factory-2

As a leader in the industry, Brother Furnace is not only able to provide a diverse range of box furnaces but is also able to tailor-make exclusive solutions to meet the specific needs of our customers.

Each series of Brother Furnace's chamber furnaces has its unique features and advantages, which can meet different application requirements.

Whether you are looking for a small chamber furnace for scientific research and exploration, or a large, efficient muffle furnace for large-scale industrial production, Brother Furnace will provide you with the most comprehensive and professional consulting and advice based on our extensive experience and professional technical team.

Brother Furnace is committed to ensuring that each of your high-temperature treatment needs can be perfectly realized.

If you need more information or to select the most suitable furnace, please feel free to contact us.
